This Cabin Energy Solar Kit includes:

Prewire Bundles - The Ultimate In Convenience!

48 Volt
Magnum 4400W 120/240vAC Split Phase

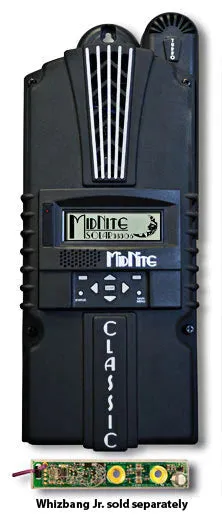

MidNite Classic 150 MPPT Controller

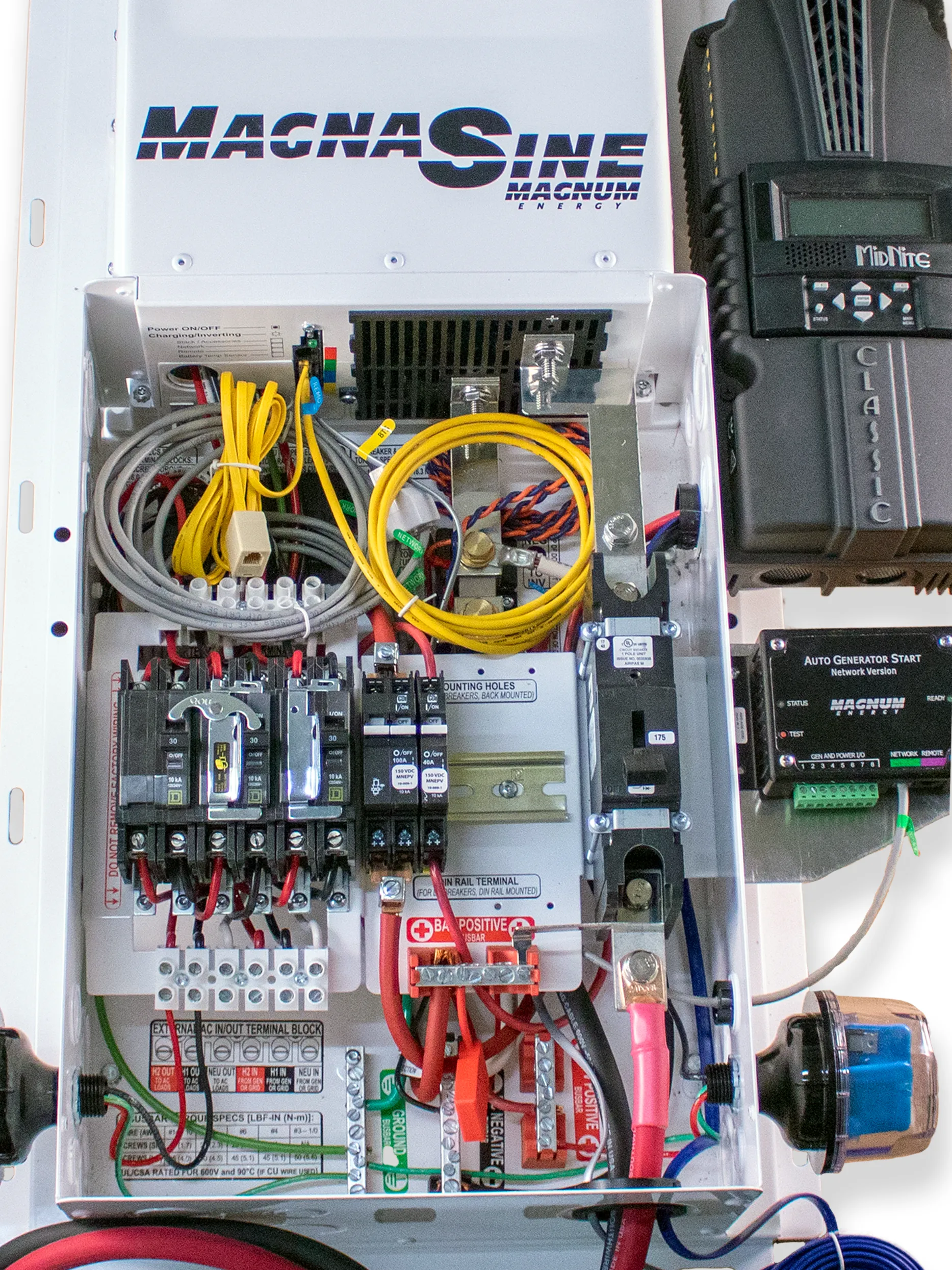

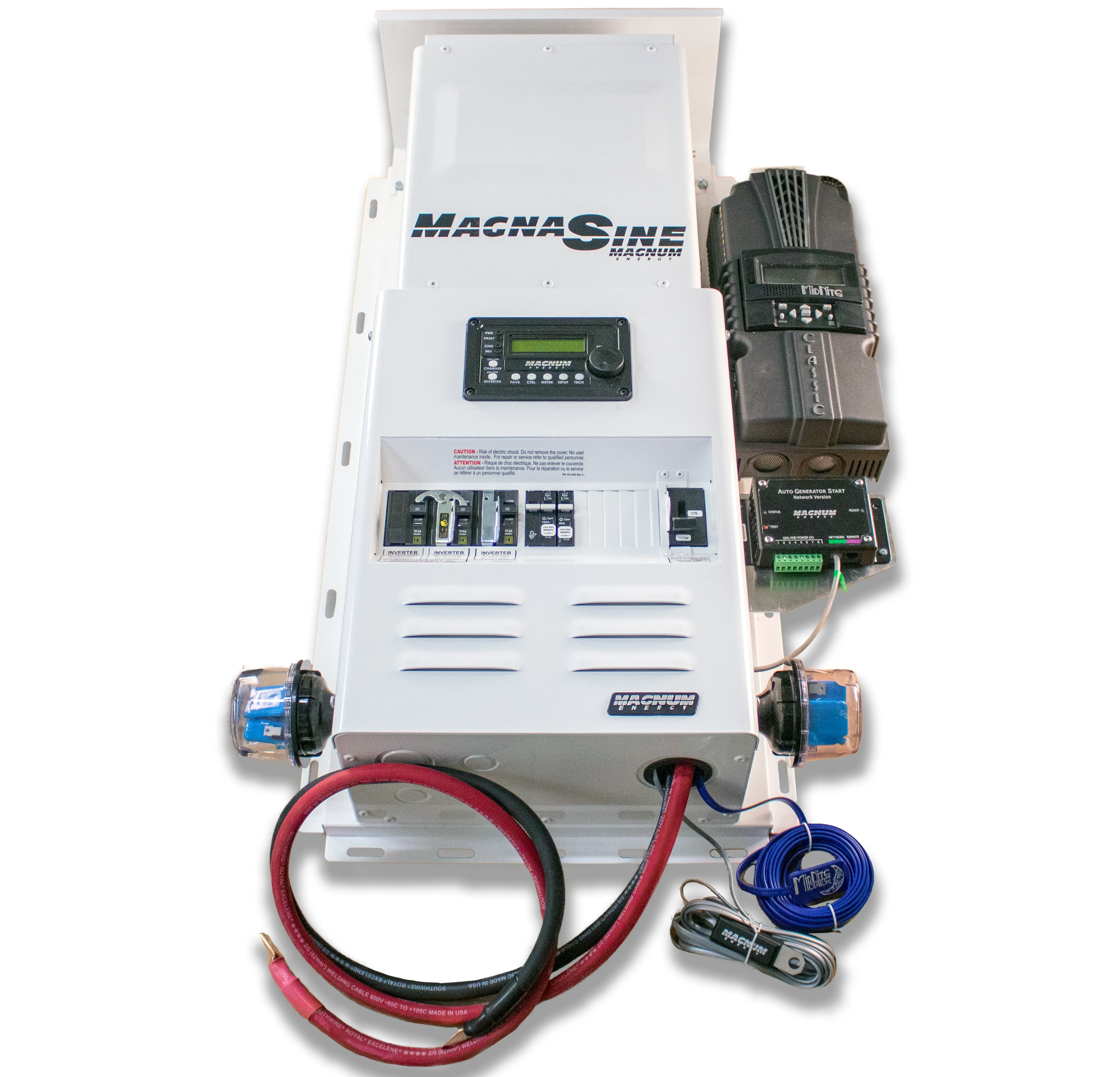

Designed to make your off-grid Canadian solar PV installation easy, all components are mounted to a Magnum backplate & prewired for your convenience - battery connection cables are included & system ready to accept your PV input, AC input, and AC output connections!

Includes:

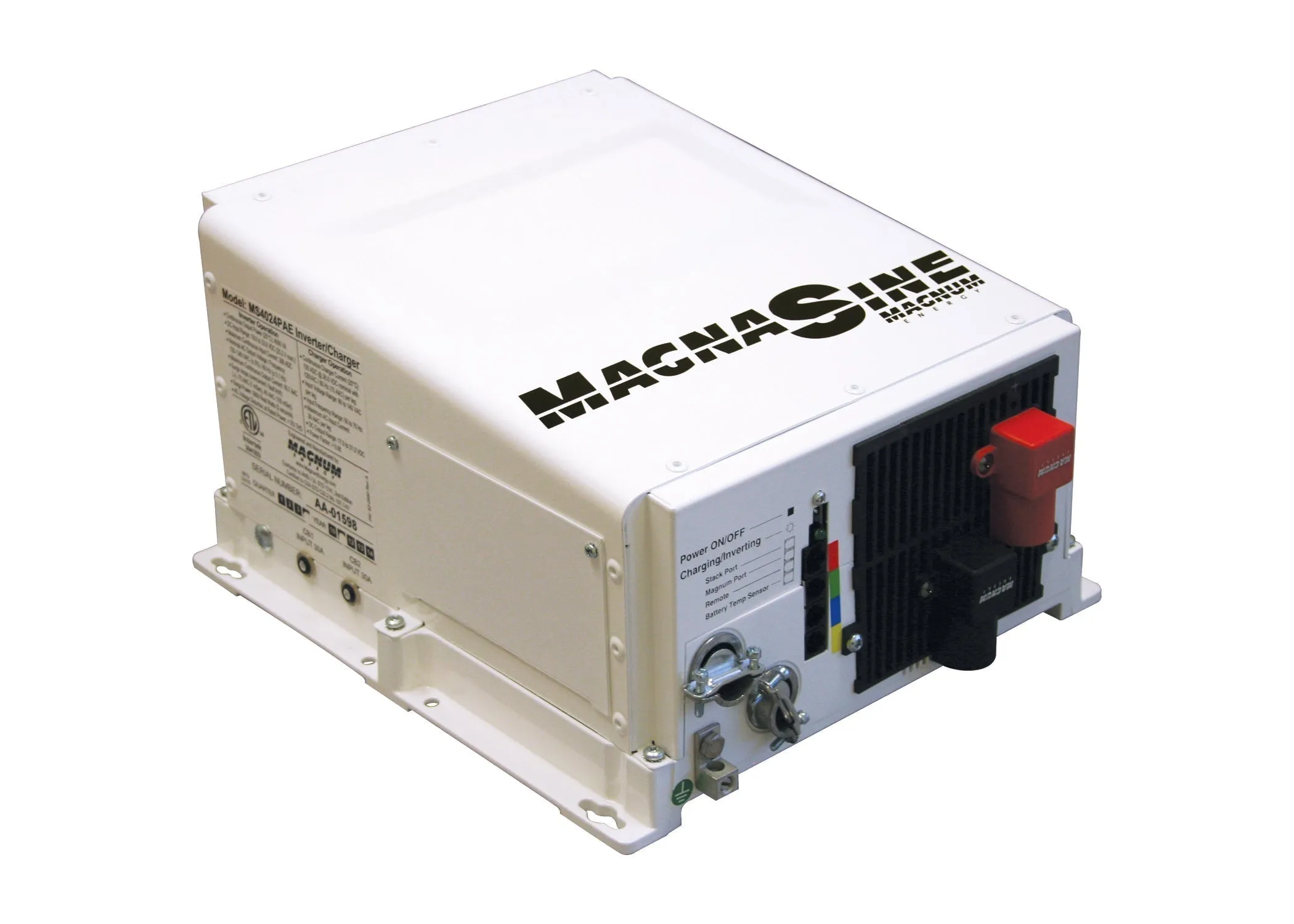

• Magnum 4400W Split-Phase Inverter / Charger BTS

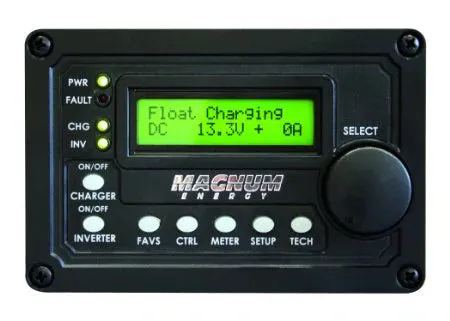

• Magnum  Advanced Remote

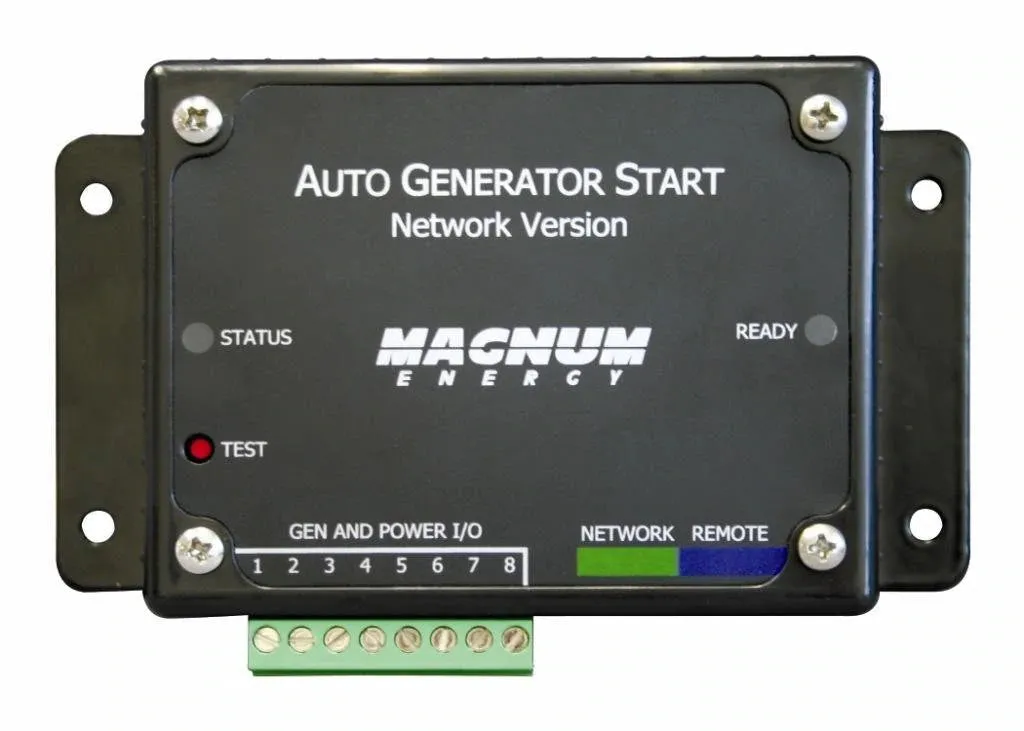

• Magnum  Networked Auto Generator Start

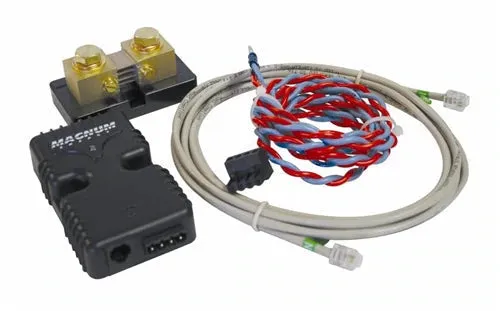

• Magnum  Battery Monitoring Kit

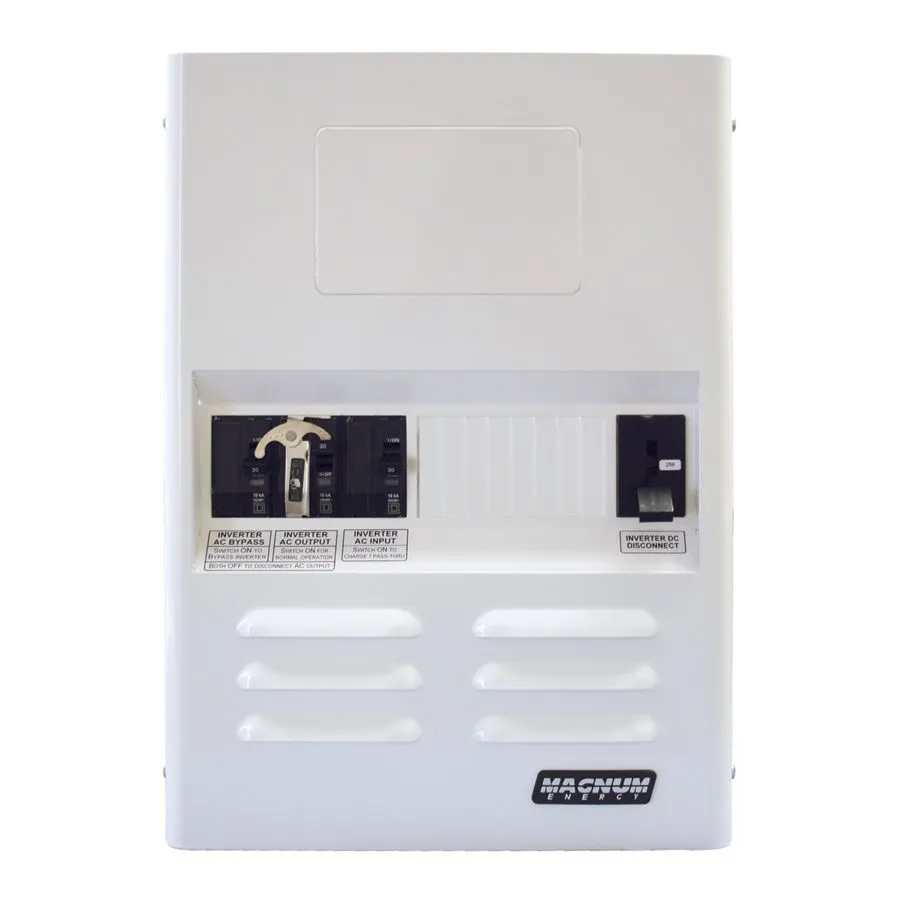

• Magnum Mini Magnum Panel w/ 175A Breaker
• MidNite Charge Controller BTS ARC Fault Protection

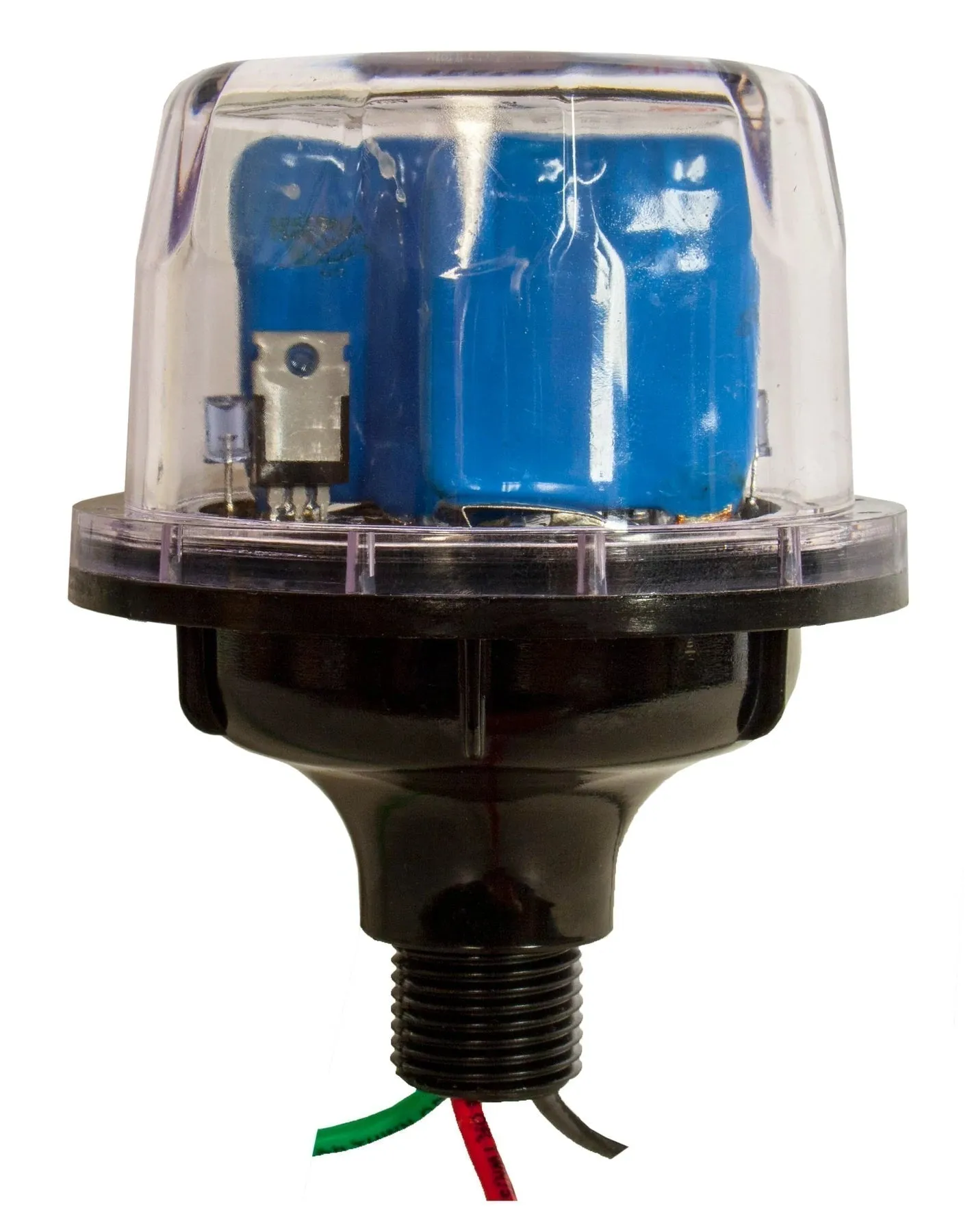

• MidNite Surge Protection Device
• MidNite Surge Protection Device
• PLUS preinstalled breakers & miscellaneous wiring used for the prewiring
• PLUS battery cables
• PLUS 5-Year Manufacturers Warranty on all Magnum & MidNite products included on this prewire bundle!

Please note:  All units ship with the factory default parameters & settings. We encourage customers to read all related documentation and ensure they are sizing their systems correctly before ordering. Professional installation is recommended to ensure optimal performance & local code compliance. Cabin Energy™ accepts no liability for system sizing or installation.

Qcells Solar Panel Bundle includes: 2880 Watts Total

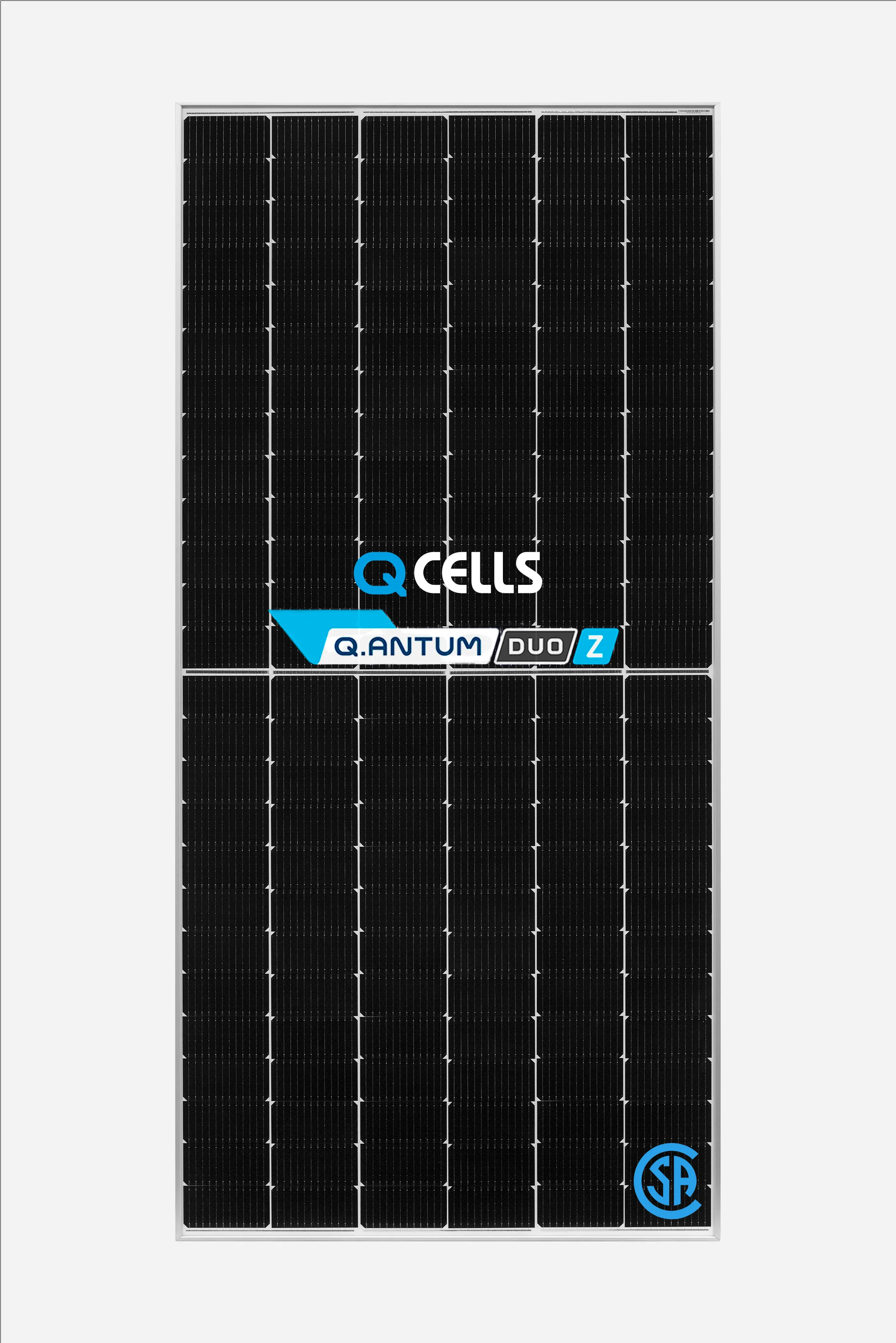

• 6 x 480 Watt Q.Peak Duo XL-G10.3 78 Cell Solar Panels
• 3 x 20FT Pair #10 PV Wire with MC4 Connections

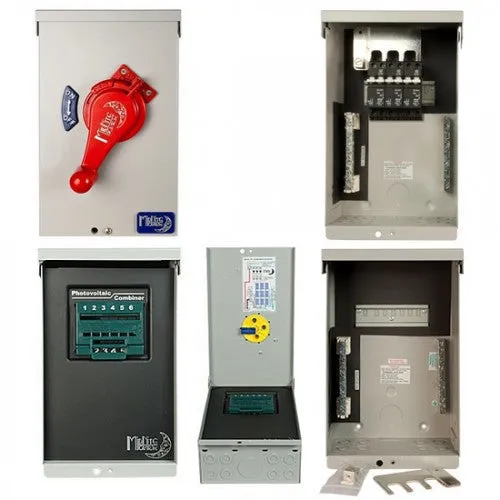

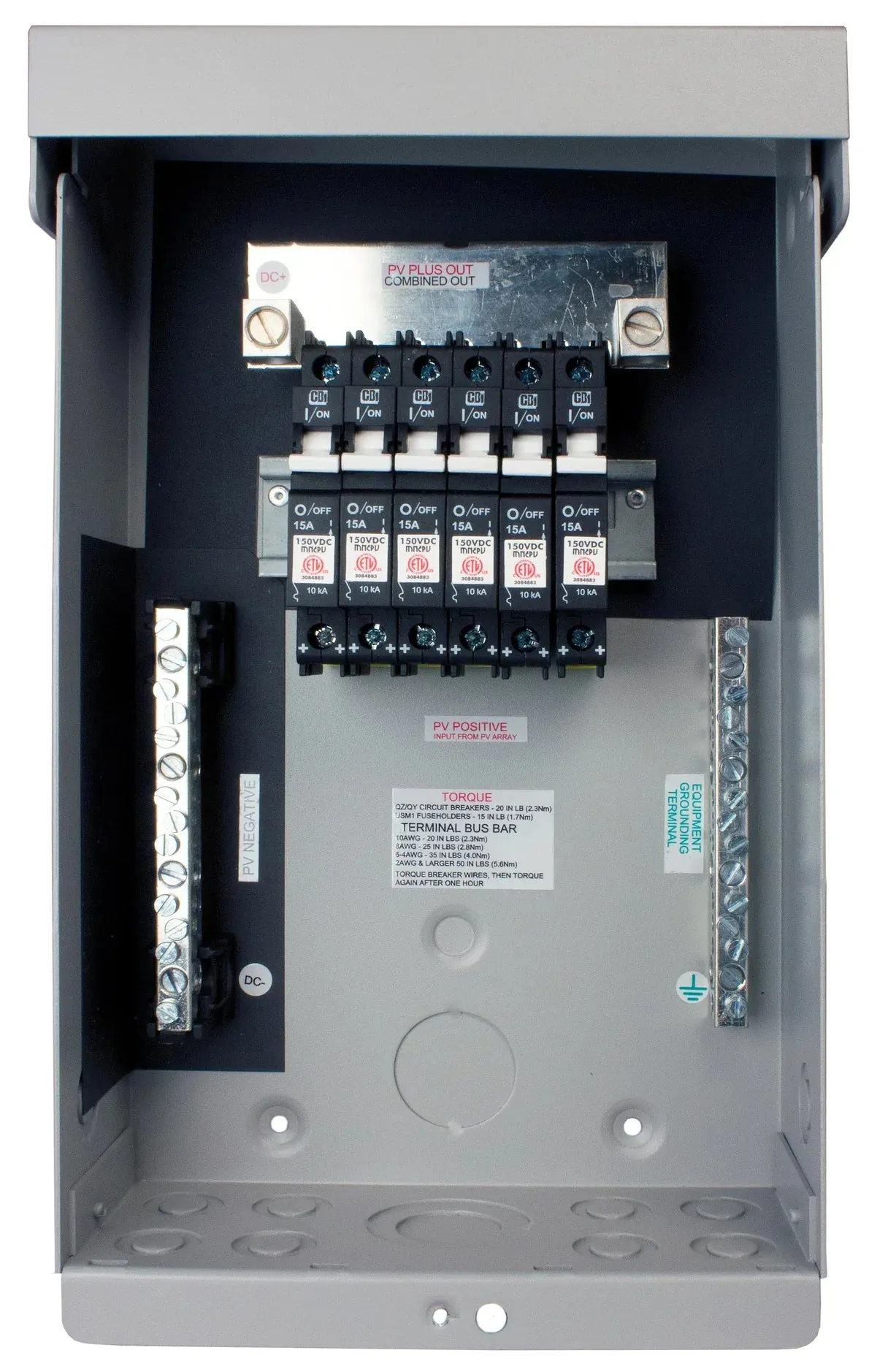

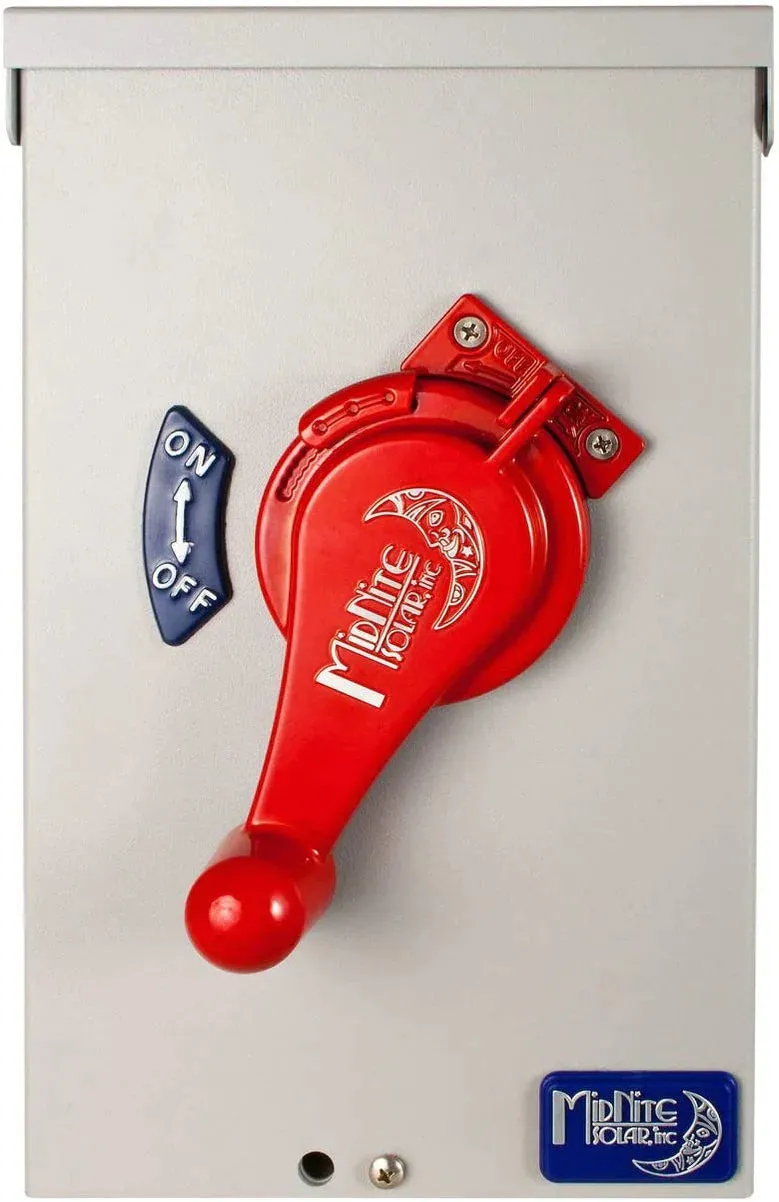

• 1 x MidNite string combiner / disconnect
• 3 x MidNite 15A DC Breakers
• 1 x 5FT #4 Stranded Wire Pair

Why QCells? Here's why!!

BREAKING THE 21% EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.6%.

LOW ELECTRICITY GENERATION COSTS

Higher yield per surface area, lower BOS costs and up to 80 watts more module power than standard 144 half-cell modules.

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.

EXTREME WEATHER RATING

High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa).

A RELIABLE INVESTMENT

Inclusive 12-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY

Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.

 The high-performance module Q.Peak Duo XL-G10.3 is the ideal solution for residential, commercial or utility applications thanks to a combination of its innovative Q.ANTUM DUO Z technology and its cutting edge cell interconnection. This 1500 UL/IEC Solar module ensures superior yields with up to 480 watt power while yielding very low LCOE. (Levelized Cost of Electricity)

Nominal Power - 480 Watts

Efficiency - 21.6% (Compared to 16-18% for most solar panels)

Maximum System Voltage - 1500 (UL) / 1500 (IEC)

Dimensions - 87.2 x 41.1 x 1.38 Inches (Including Frame)

Weight - 58.4 lbs

Snow / Wind Test - 5400 Pa / 3000 Pa

Warranty - At least 98% of nominal power during first year. Thereafter max. 0.5% degradation per year. At least 93.5% of nominal power up to 10 years. At least 86.5% of nominal power up to 25 years.

Rolls Battery Bundle Includes: 21.4KWH (10.7KWH at 50% DOD) Total

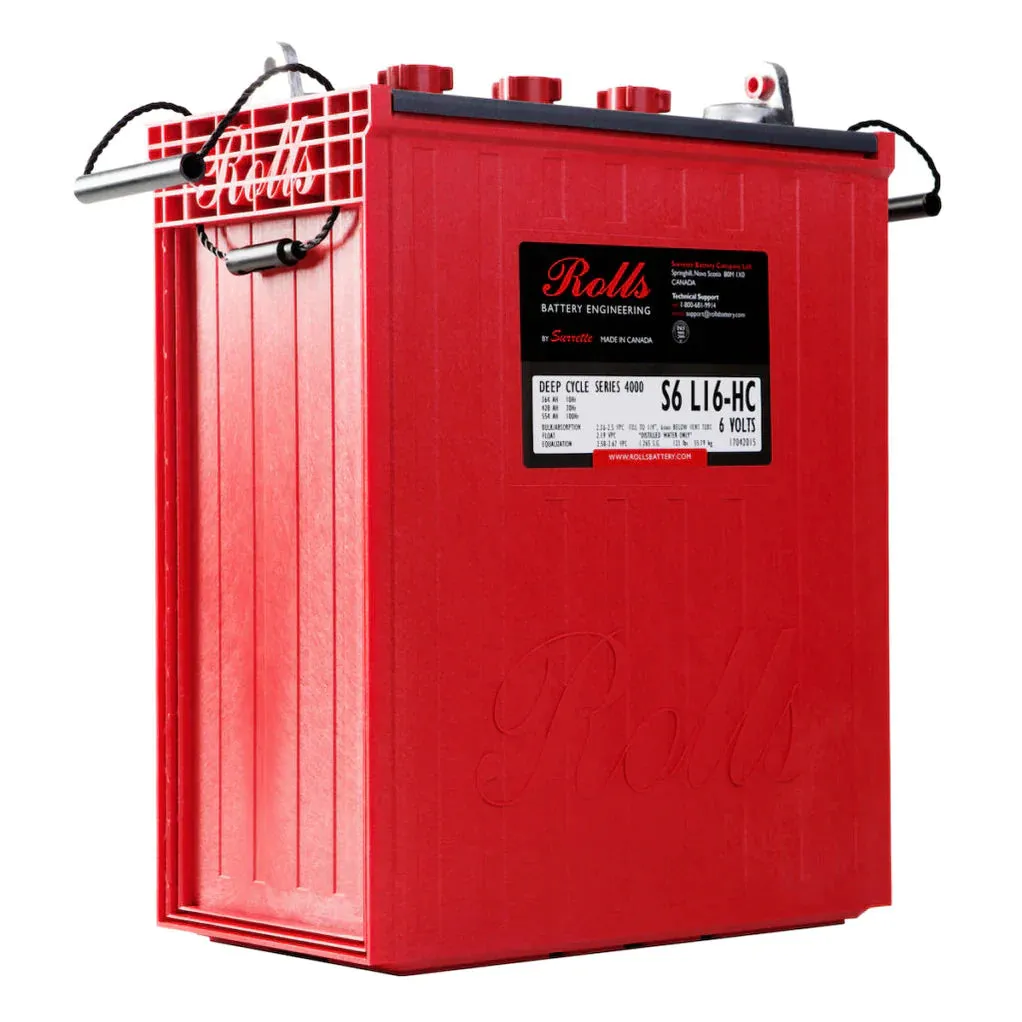

• 8 x Rolls S6 L16-HC 6V 445AH Flooded Acid Batteries
• 7 x 8" 2/0 Battery Connect Cables
