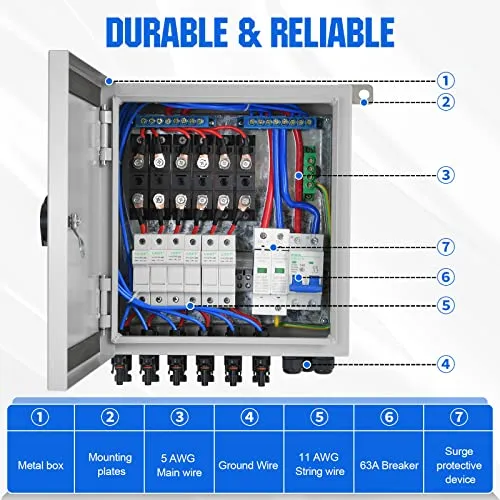

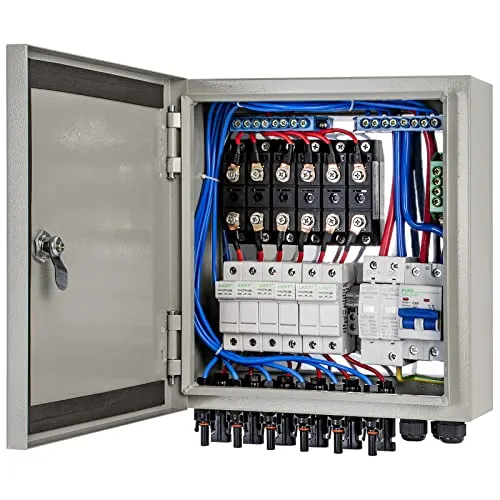

Name: ECO-WORTHY 6 String PV Combiner Box(Metal Case) & 63A Circuit Breakers for Solar Panels
SKU: 341729

Brand: ECO-WORTHY

Color: Gray

Features:

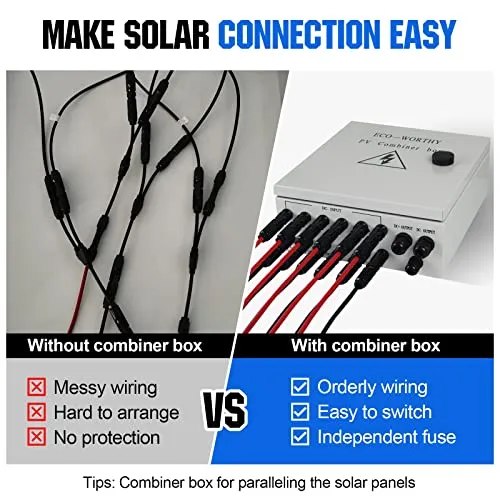

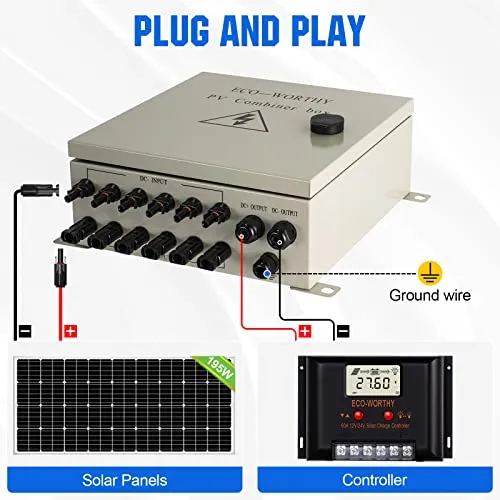

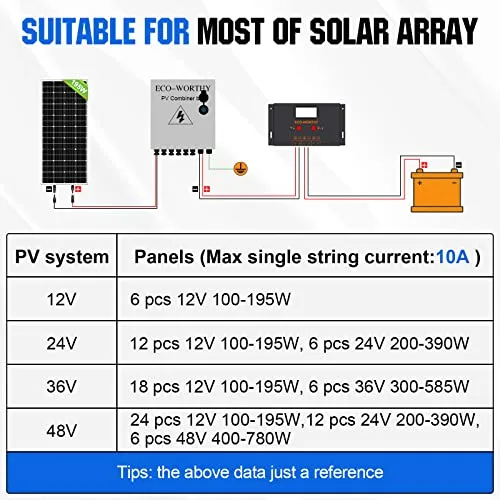

6 String Configuration, Max current of single PV input array is 10A .Each String Continuous Duty Rated at 250 Vdc.(Regardless of the specifications of the solar panels, regardless of the connection method is series or parallel, as long as the current and voltage of a single PV does not exceed 10A/250Vdc, you can connect the combiner box)

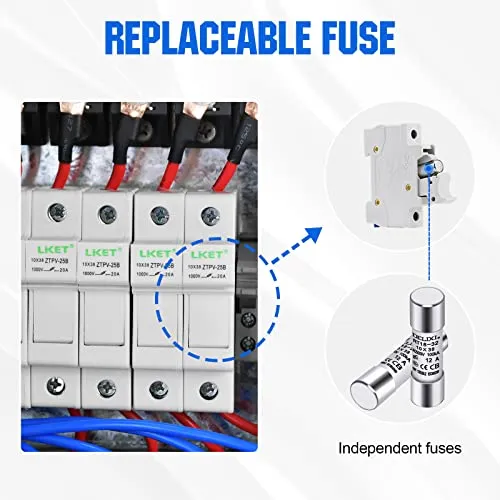

Single PV input array installs with high voltage fuse, its function over-load, over-charge protection
Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection,Touch-safe Circuit Breakers& Non-conductive Box
Professional high voltage breaker controls output, with anti-circuit protection and make the system more reliable, safety
This PV array combiner box includes Output Cable Glands & Safety Labels & Lightning/Surge Protection Module (1000V)

Binding: Lawn & Patio

model number: L03040401016-1

Part Number: L03040401016-1

Details: Specifications:
Model: ECO-PV6
Input Circuits/Circuit Breakers: 6
Circuit Breaker Rating: 10A
Max Total DC Output Current: 60A
Max Input Voltage Rating: 250V
Max Output Voltage Rating: 250V
Protection Grade: IP65
Operational Environment Temperature: -30℃~ 70℃
Relative Humidity: 0-95%
Cooling Method: Natural Cooling
Surge Lightning Protection: Yes
Dimension: 10.3"x12.6"x4.5" (260*320*115mm)

Package Included:
1pc PV Combiner Box
User Manual
